Professional Riders

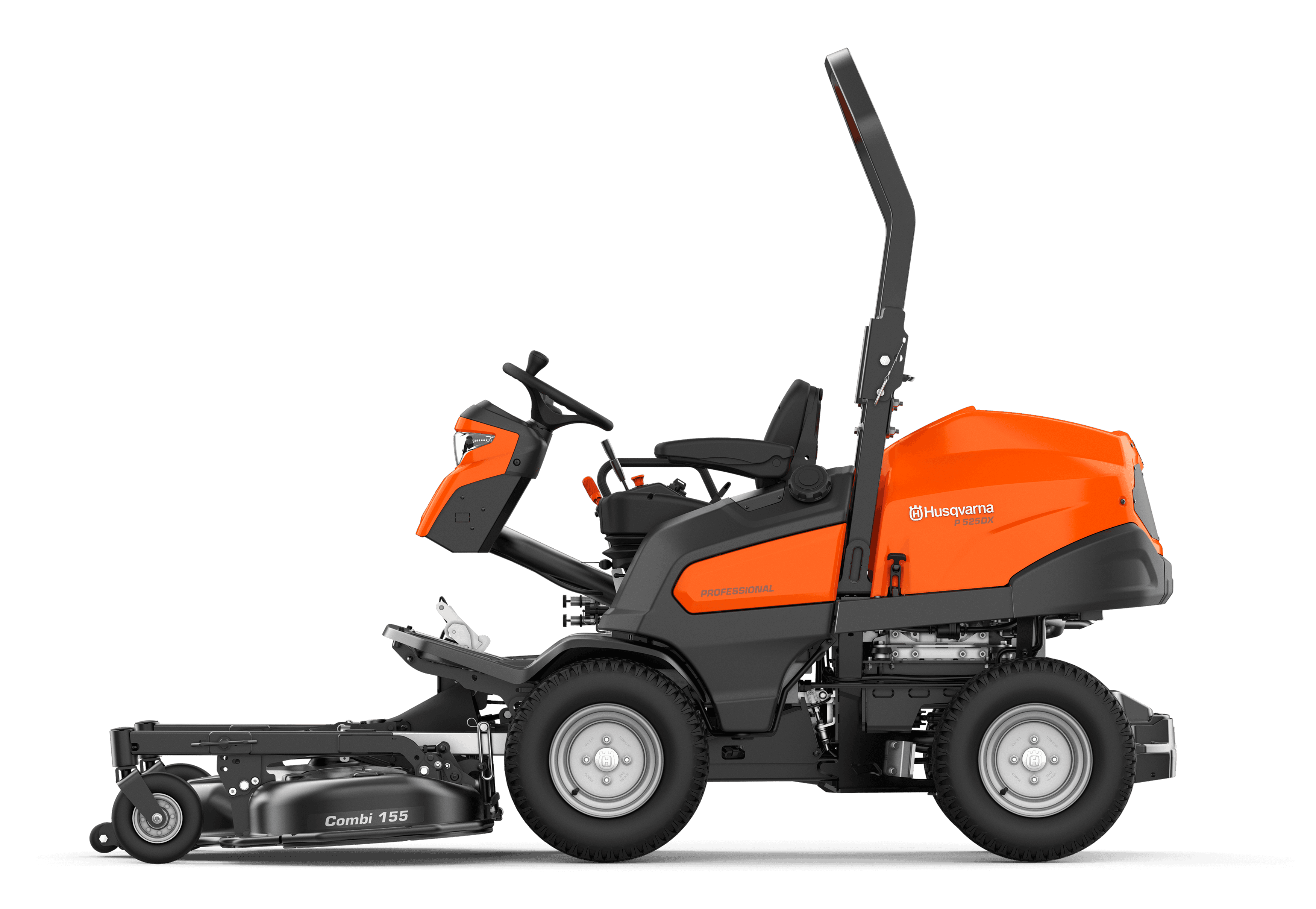

P 525DX

$34,999.00Rec. retail price incl. GST SKU: 967985301

Power/fuel typeDiesel
Cutting width, min132 cm

Product description

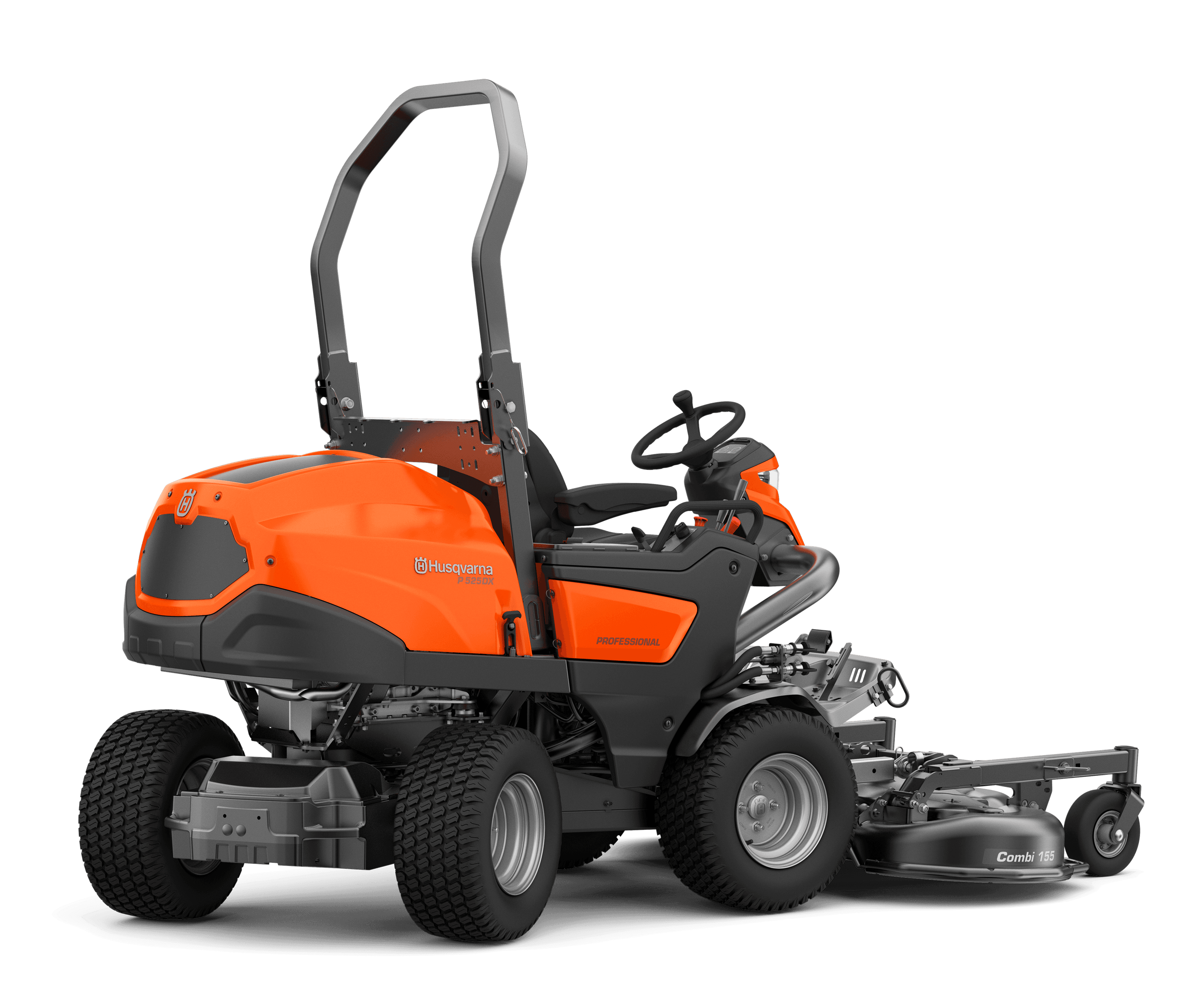

High-capacity diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket and broom give increased productivity all-year round. The P525DX can be fitted with either a 132 or 155 cm Combi cutting deck. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Price excludes deck. Decks supplied at additional cost.

Product Information

Features (24)

Patented articulated steering

Min. clearance circle by articulated steering

Kubota diesel engine

3-cylinder Kubota diesel engine with full pressure lubrication.

Integrated connectivity

The model has a built-in connectivity module which easily can be connected with Husqvarna Fleet Services™.

Mowing accessibility

Unbeatable mowing accessibility

The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming. image

Trimming ability

Front-mounted cutting deck for precise trimming

The compact size together with the unique articulated steering makes it easy to manoeuvre the machine in narrow spaces and tricky areas. image

Compact design

Compact design for easy operation in narrow spaces

The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability. image

All-Wheel Drive (AWD)

Excellent hillside driving performance

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round. image

Versatile usage

Accessories for versatile year/round usage

Cabin

Optional cabin

Solid and hardened PTO axle for maximum efficiency and durability. image

Shaft PTO

Shaft PTO for maximum efficiency

Quick coupling

Easy tool exchange by unique quick coupling

Ergonomic operation

Ergonomic operator's interface

Heavy-duty hydraulic-cylinder power steering makes driving less strenuous. image

Hydraulic power steering

Hydraulic power steering for increased comfort

Controls are easy accessible and designed for optimum user comfort. image

Easy-access controls

Easy-access controls for user comfort

Tilting hood

Tilting hood makes maintenance quick and easy

For easy maintenance and longer lifetime. image

Greasable mandrels

Greasable mandrels for easy maintenance

For easy handling of corners and close-up trimming against walls and fences. image

Off-set cutting deck

Off-set cutting deck for easy close-up trimming

Service postion on the cutting deck facilitates cleaning and service. image

Service position

Service position for easy deck maintenance.

Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability. image

Durable ladder frame

Heavy-duty, durable steel ladder frame

For improved durability the complete rear wagon is one piece of ductile cast iron. image

Cast iron rear wagon

Durable cast iron rear wagon

The cutting deck is stamped from one single sheet of 4.5 mm (7 gauge) steel. image

Heavy-duty deck design

16 inch wheels

Equally sized wheels for a comfortable ride

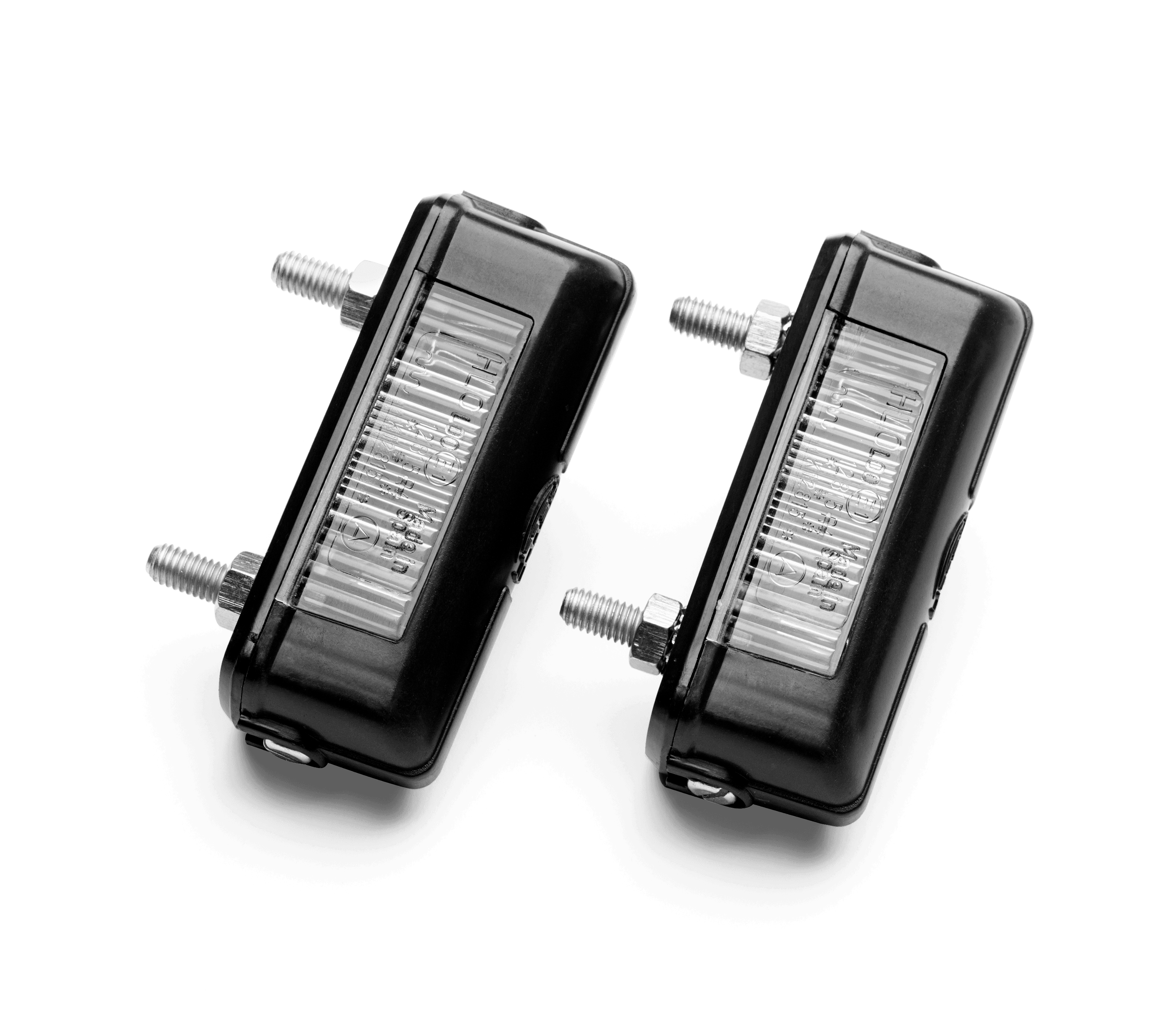

Dual LED lights

Dual LED lights for enlarged lighted area and safer operation in darker conditions.

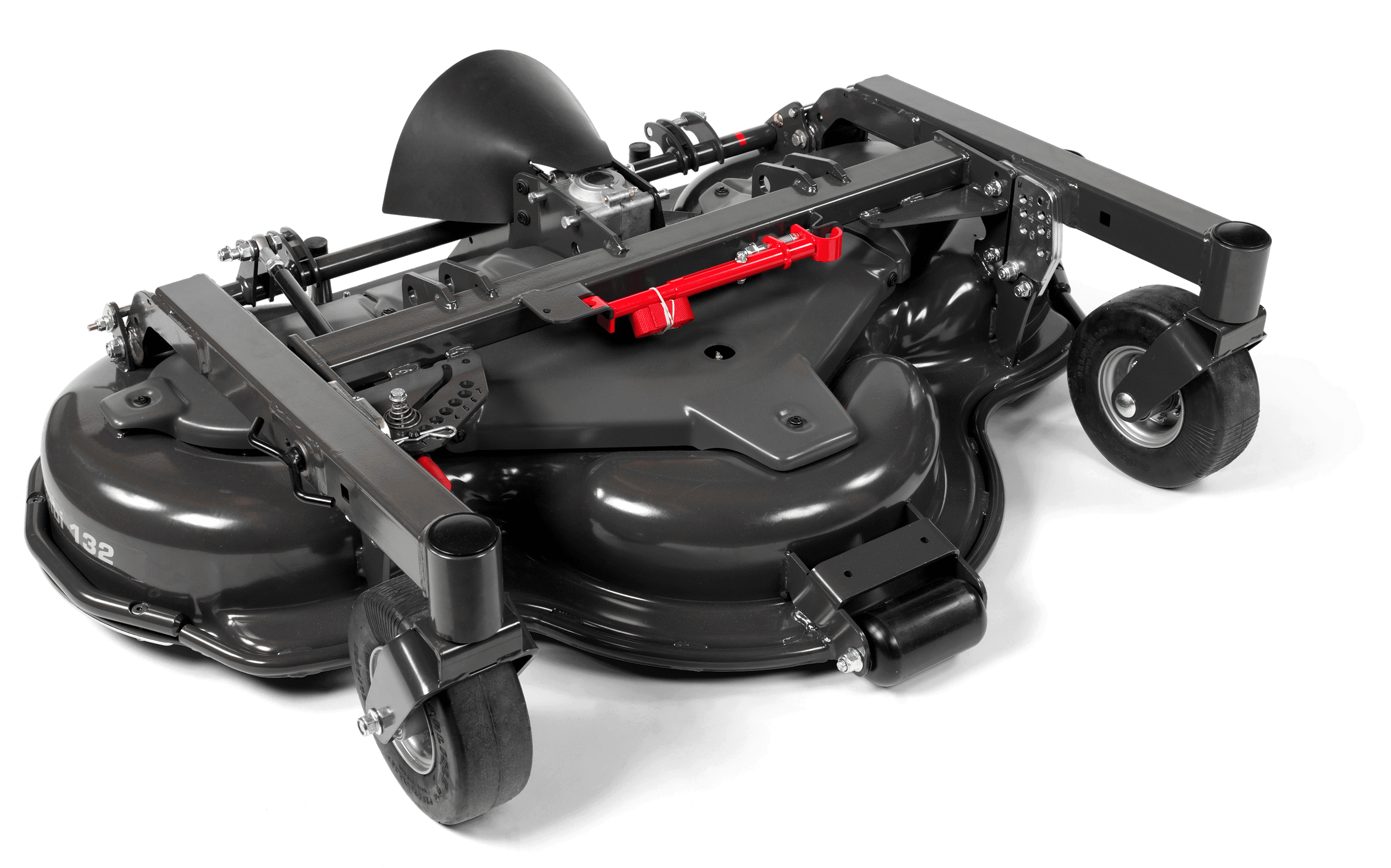

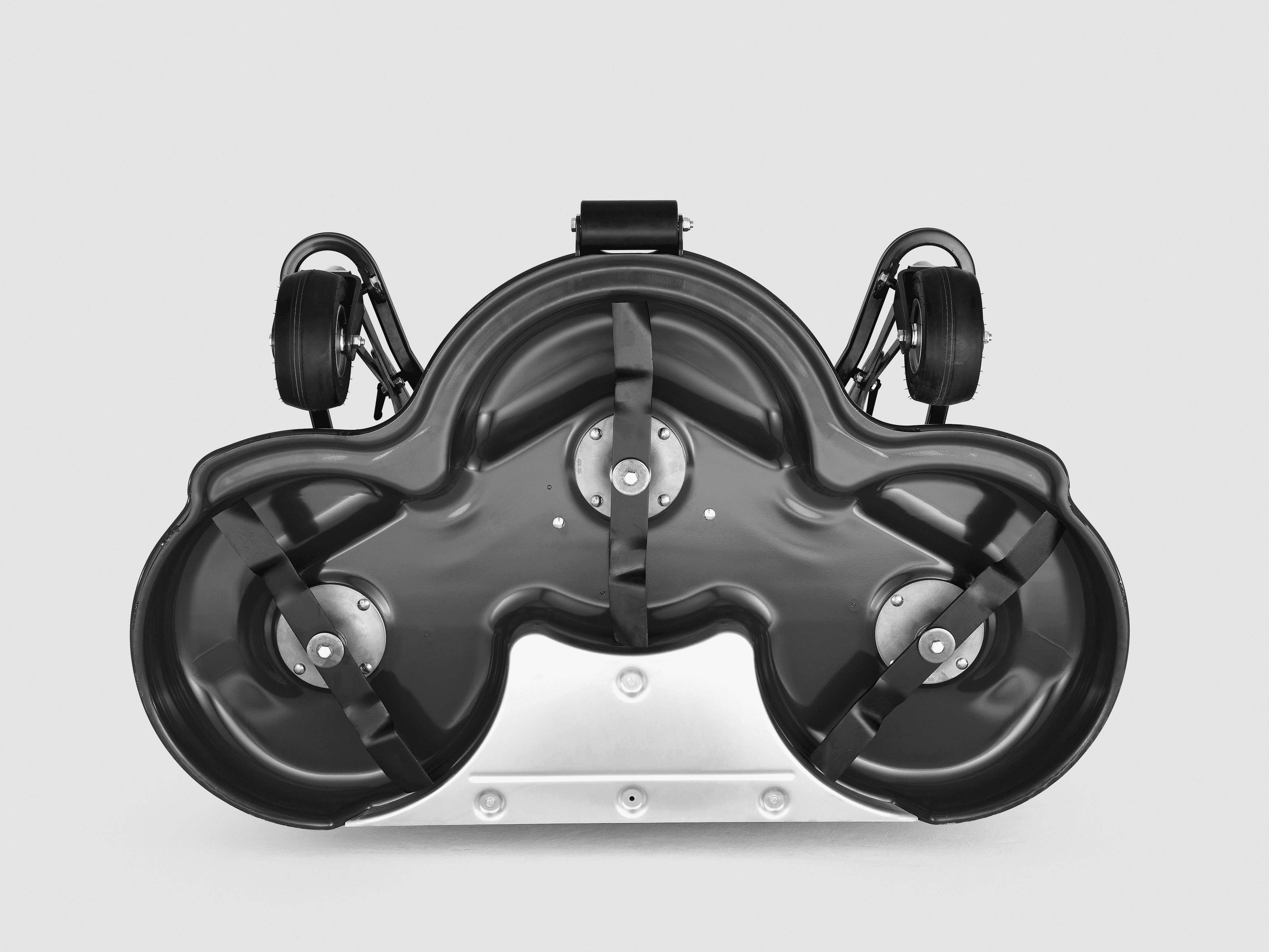

Prepared for the high-performing and unique Combi deck. Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). Stamped from a single piece of steel plate in a flow-optimized design to deliver best in class mulch result. image

Ready for Combi deck

Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed).

Specifications	Art No: 967985301
Output shaft power	17.8 kW
Weight (excl. cutting equipment)	684 kg
Cylinder displacement	1123 cm³
Weight (complete product w/o side packed articles)	677 kg
Fuel tank volume	23 l
Base machine, height	133 cm
Base machine, length	207.8 cm
Base machine, width	115.3 cm
Battery capacity	62 Ah
Battery pack weight	14 kg
Battery voltage	12 V
Cutting height max	112 mm
Cutting height min	30 mm
Cutting width, max	155 cm
Cutting width, min	132 cm
Fuel consumption	270 g/kWh
Fuel tank volume	6.1 gal (US)
Gross weight towed	350 kg
Ground clearance	140 mm
Net power at preset rpm	3000 rpm
Net power at preset rpm Energy	17.8 kW
Speed forward max	19 km/h
Speed reverse max	15 km/h
Uncut circle	58 cm
Wheelbase	106 cm
